Concave, Convex & Micro-Convex Wall Coverings

More Than Walls. Designed Experiences.

A decorative MDF solution designed to transform interior walls and ceilings with speed, ease, and precision.
Its concave, convex, and micro-convex designs enable the creation of continuous, refined spaces with a modern, elegant character.



More Than Walls. Designed Experiences.

Certifications and features

Responsible Production
Responsible Production
Finished Product
Finished Product
Perfect Fit Tong and Groove Design
Perfect Fit Tong and Groove Design
Quick Installation
Quick Installation
  • Tongue and Groove edge design that eases its assembly.
  • Decorative items, such as mirrors, wall frames and others can be hung on it (depending on the structural capacity of the substrate and the technical recommendations of the fastener supplier).
  • Final product, it doesn’t require any painting or polishing.

Recommended Applications

Designed for use as wall coverings, installed over wooden or galvanized profiles, as well as on masonry or concrete surfaces. Suitable for installation in dry, moisture-free areas.

Ideal for residential, office, commercial, and institutional environments, this solution delivers a refined finish while contributing to improved acoustic comfort across a wide range of spaces.

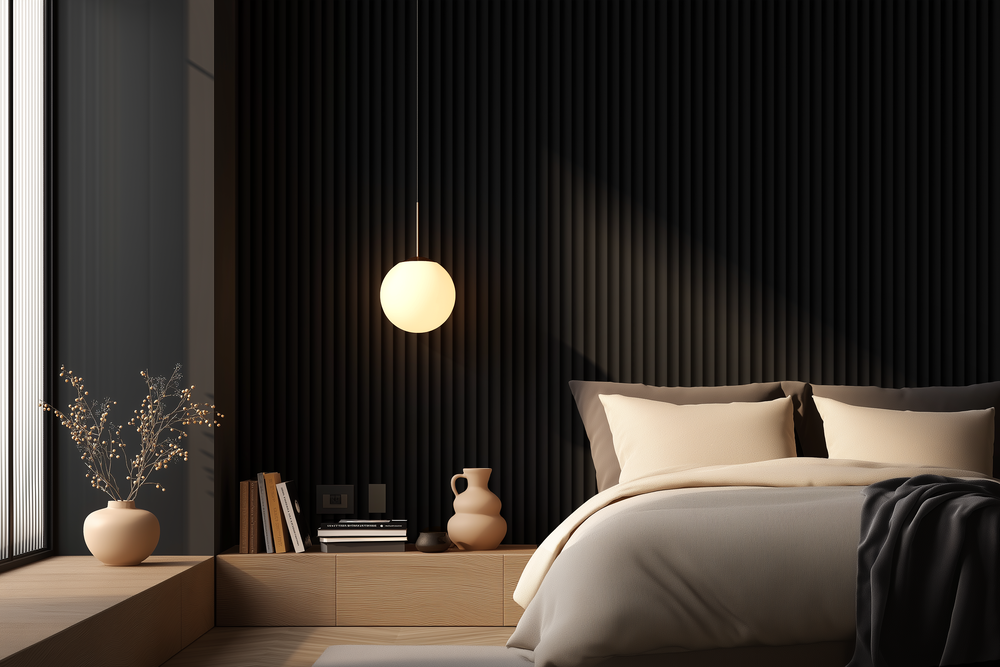

3_CONVEXO 3 BARRAS NEGRO-1

Explore Colors & Designs

Concave

WHITE

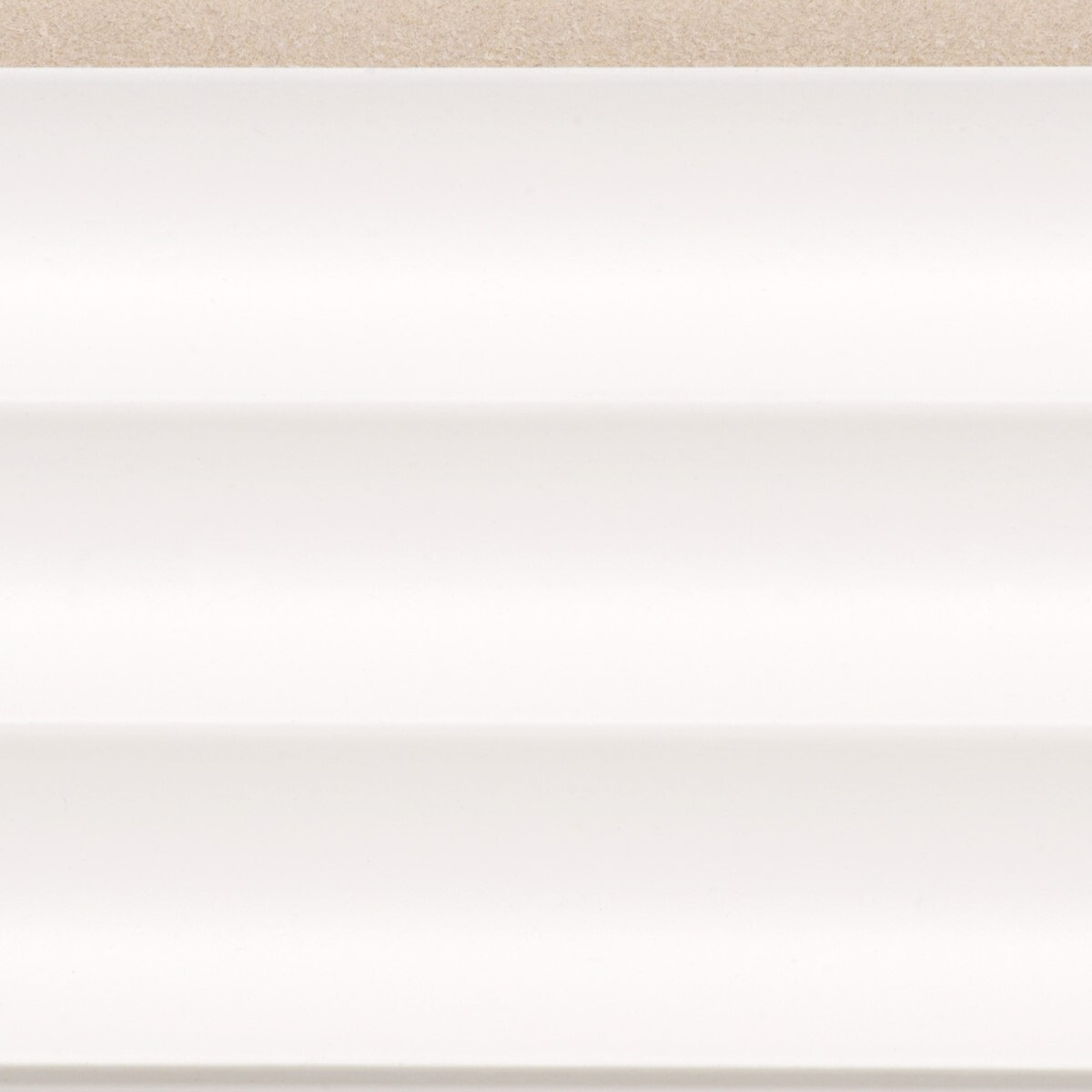

  • concavo-blanco-hori
  • concavo-blanco-vert

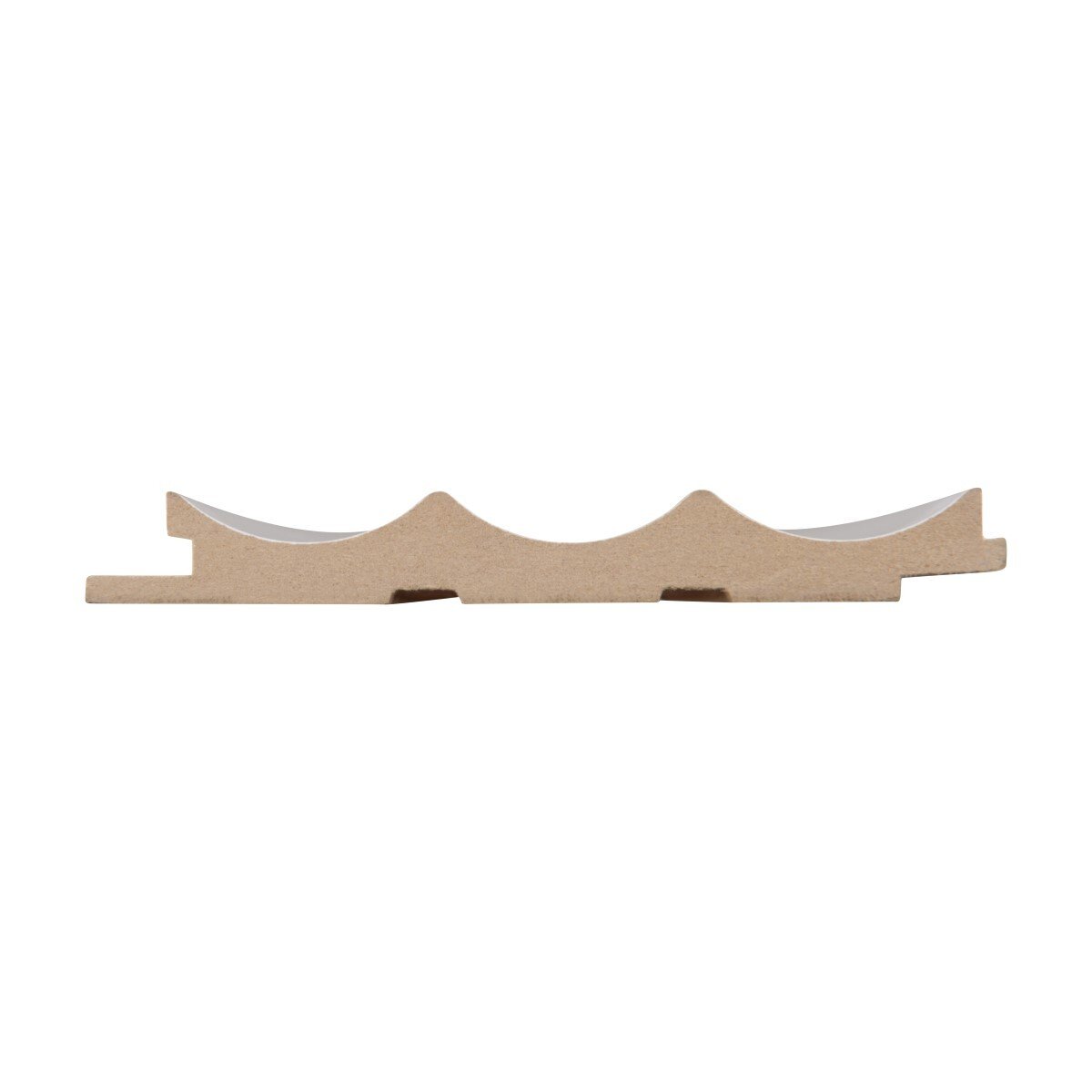

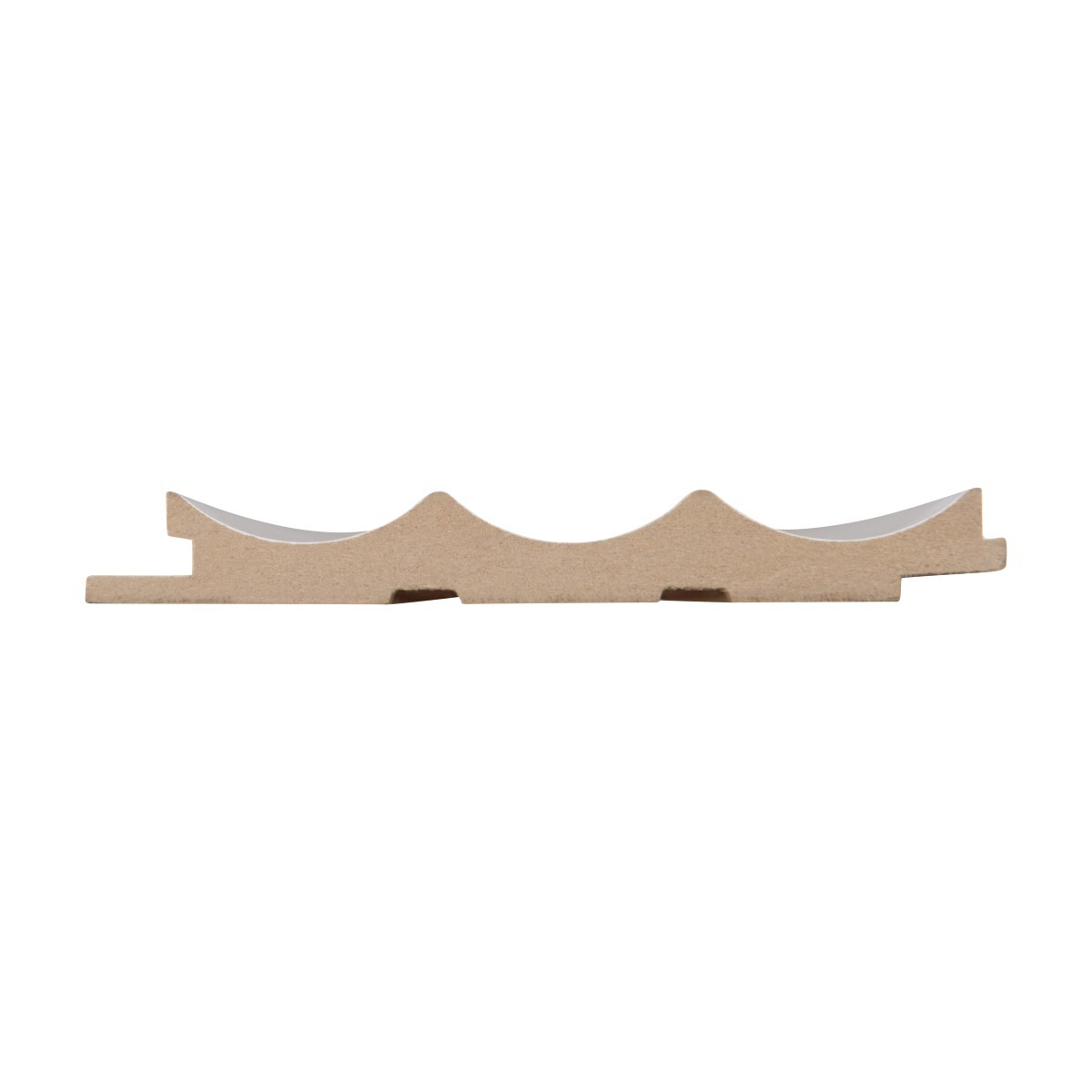

  • micro-concavo
Convex

WHITE

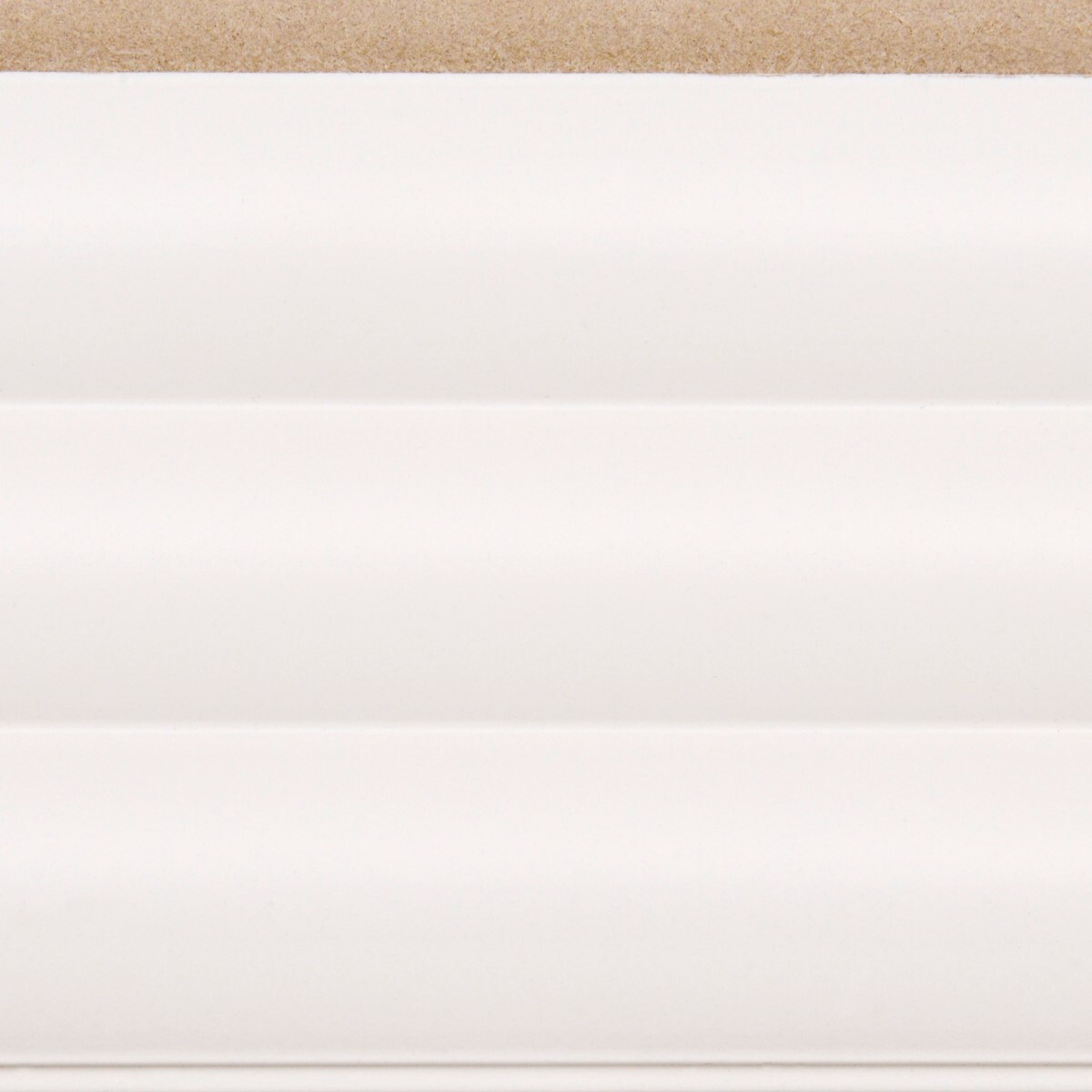

  • convexo-blanco-hori

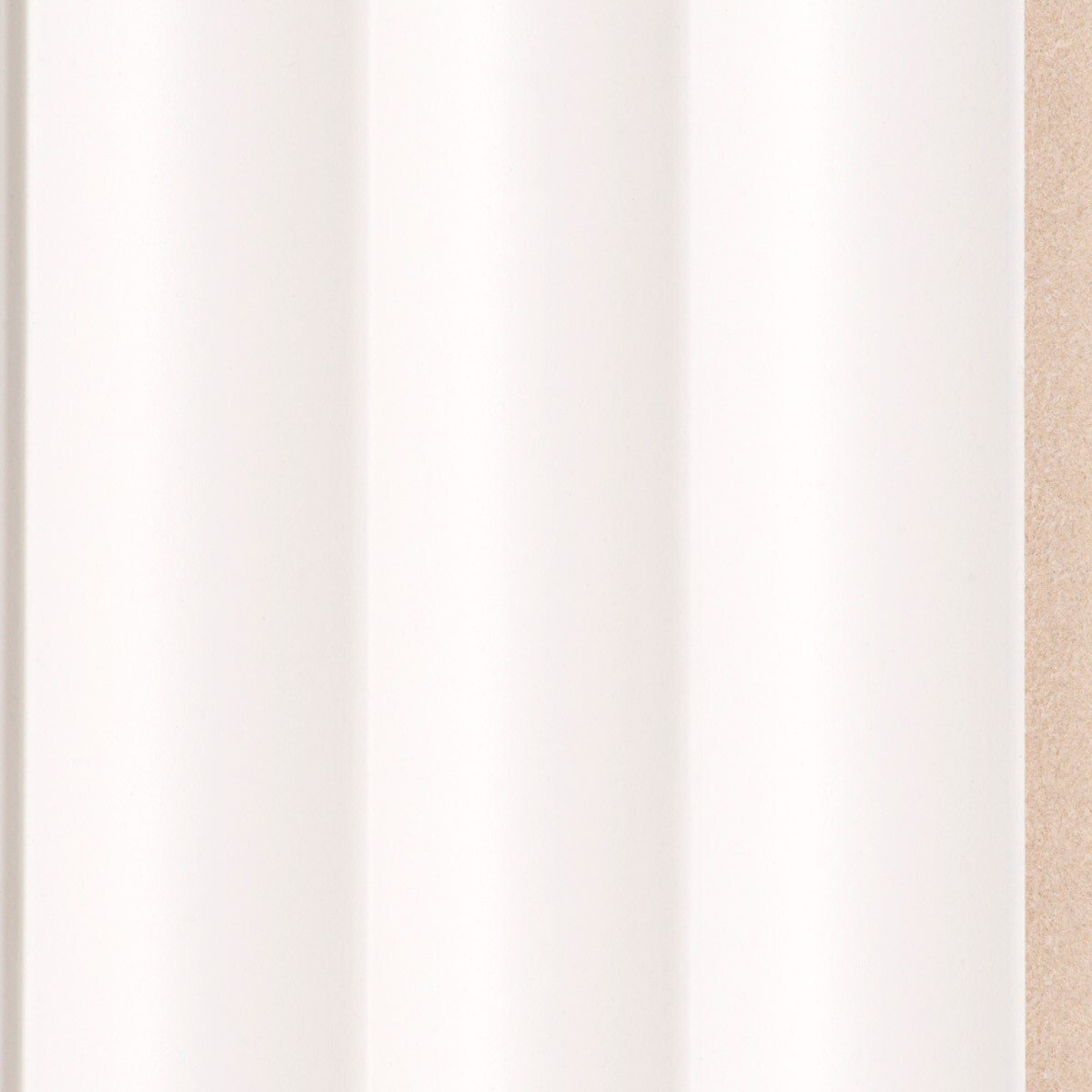

  • convexo-blanco-vert

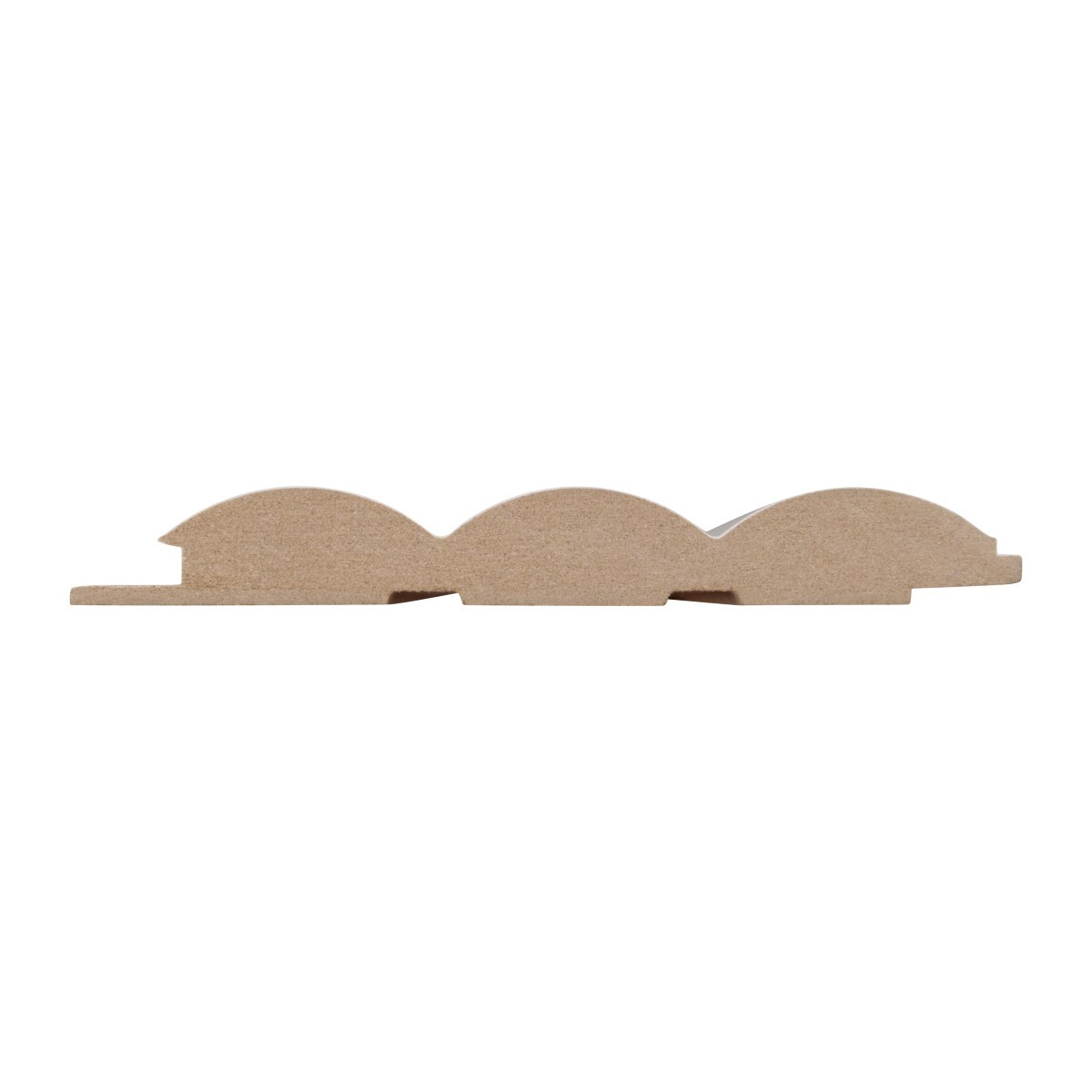

  • convexo
Convex

BLACK

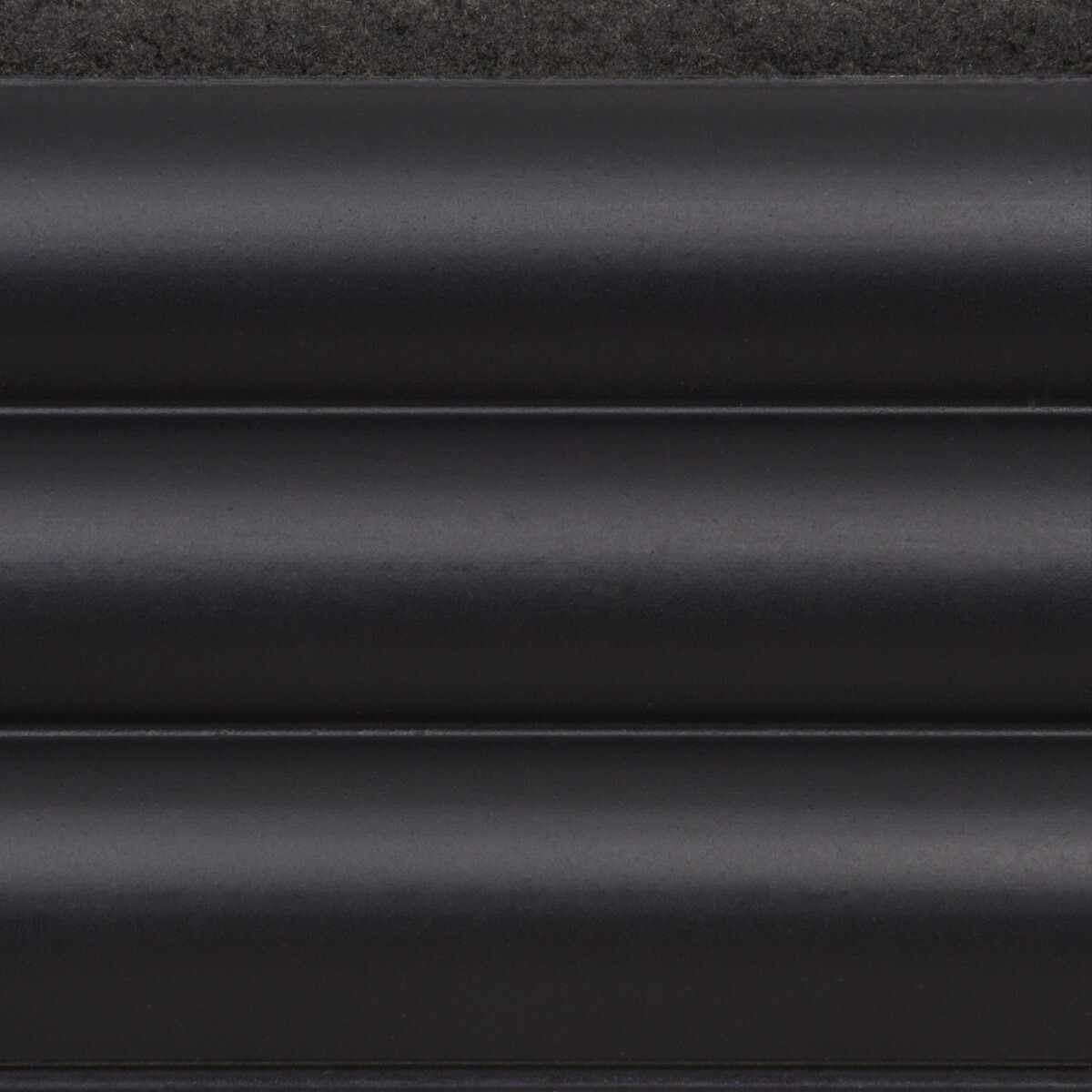

  • convexo-negro-hori

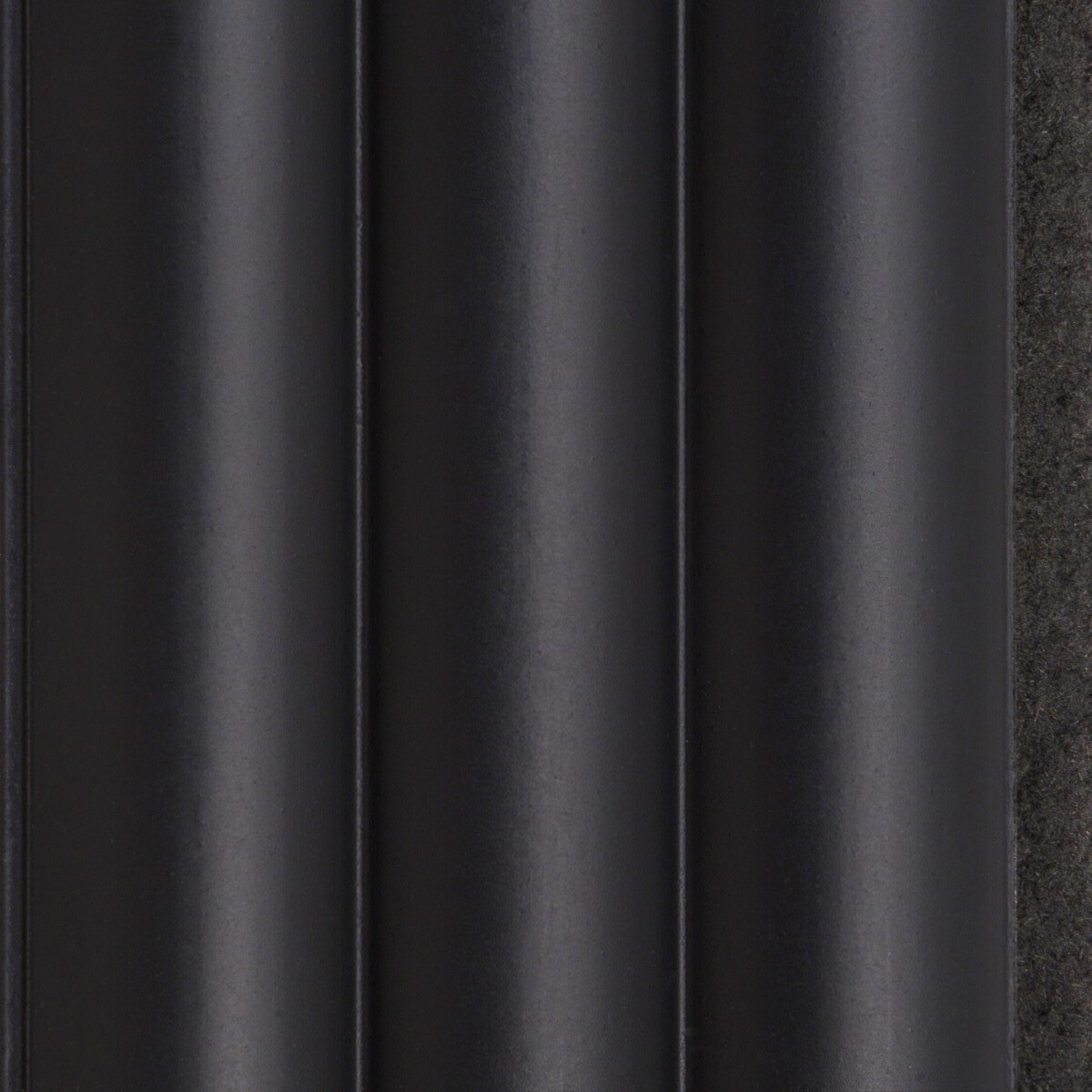

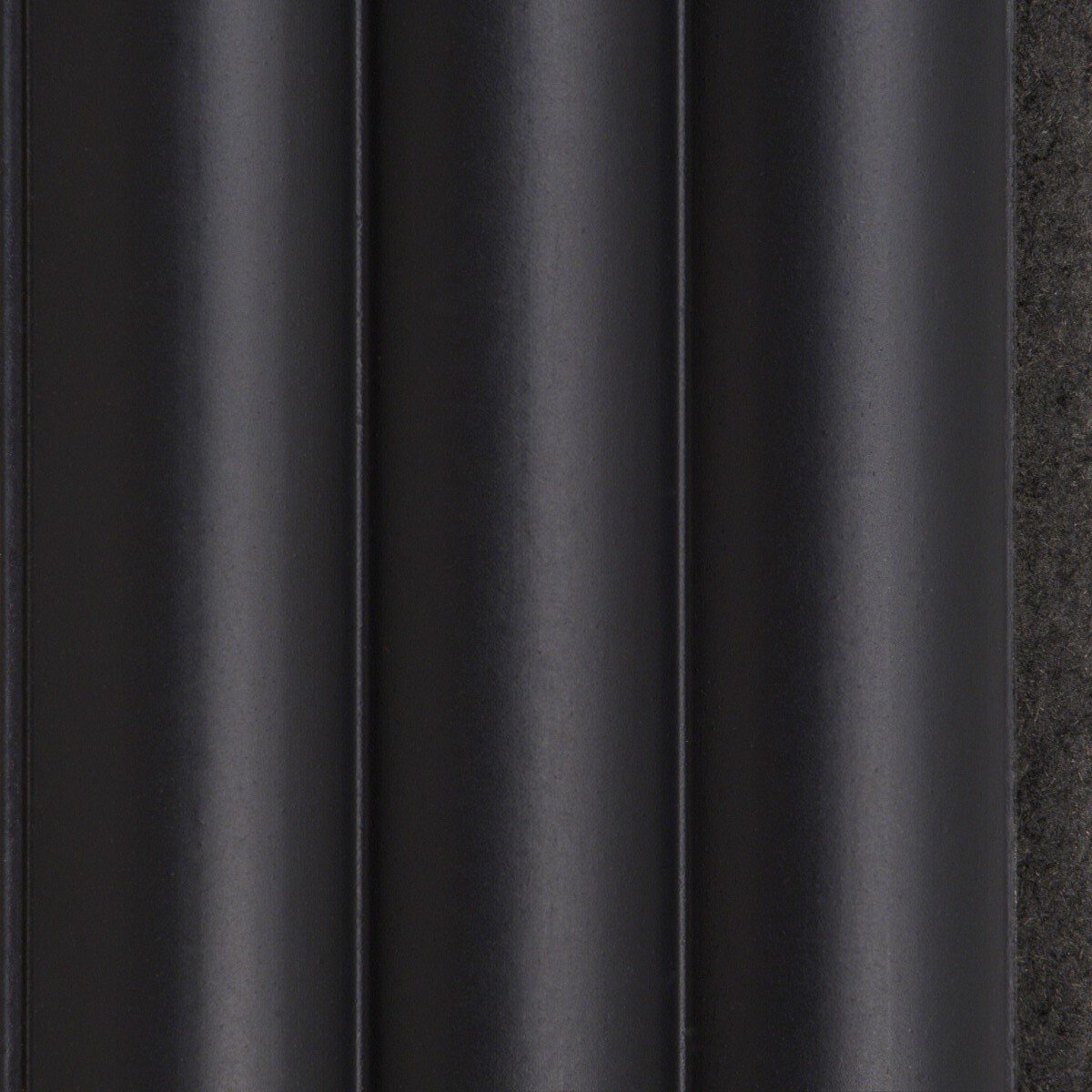

  • convexo-negro-vert
  • convexo

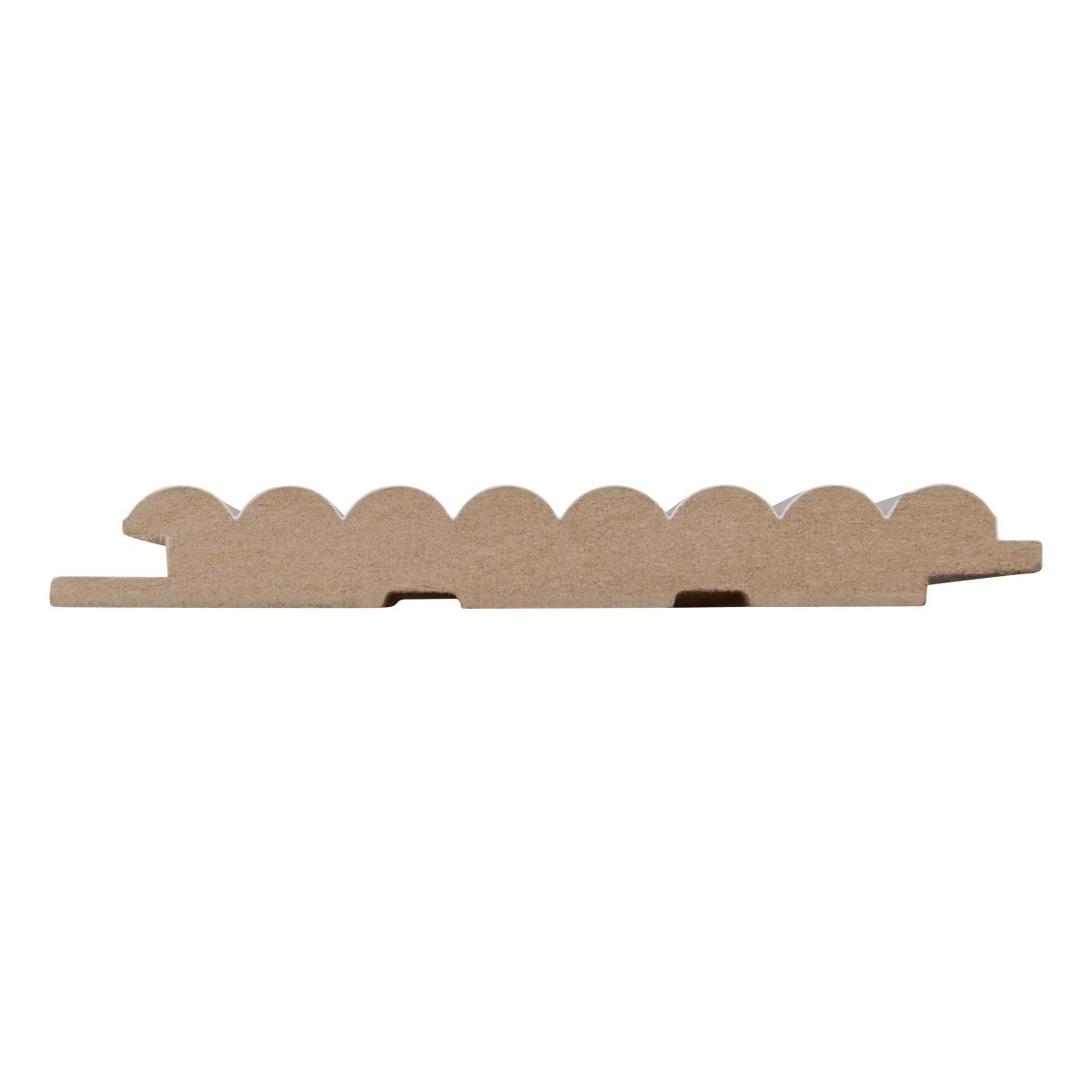

Micro Convex

WHITE

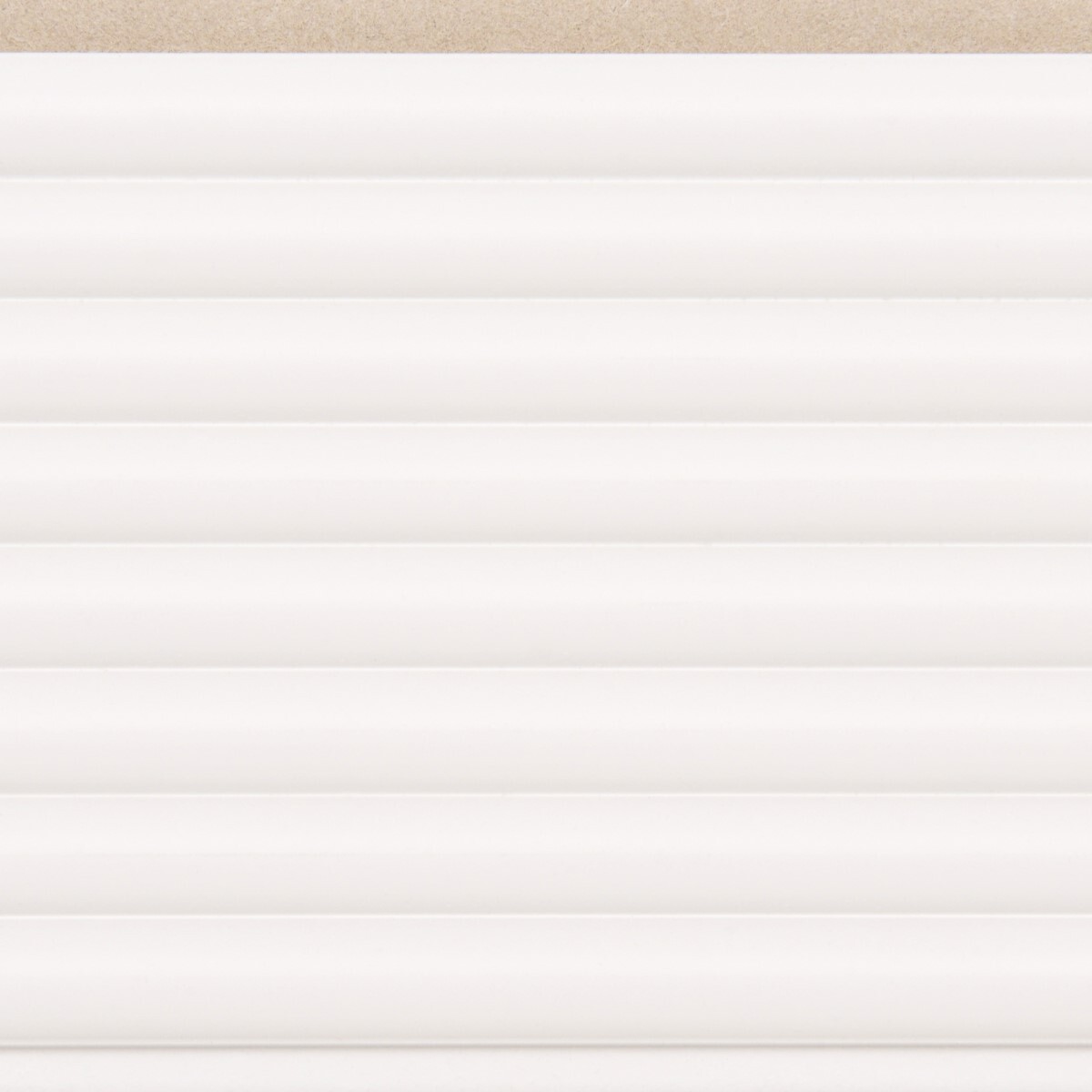

  • mconvexo-blanco-hori

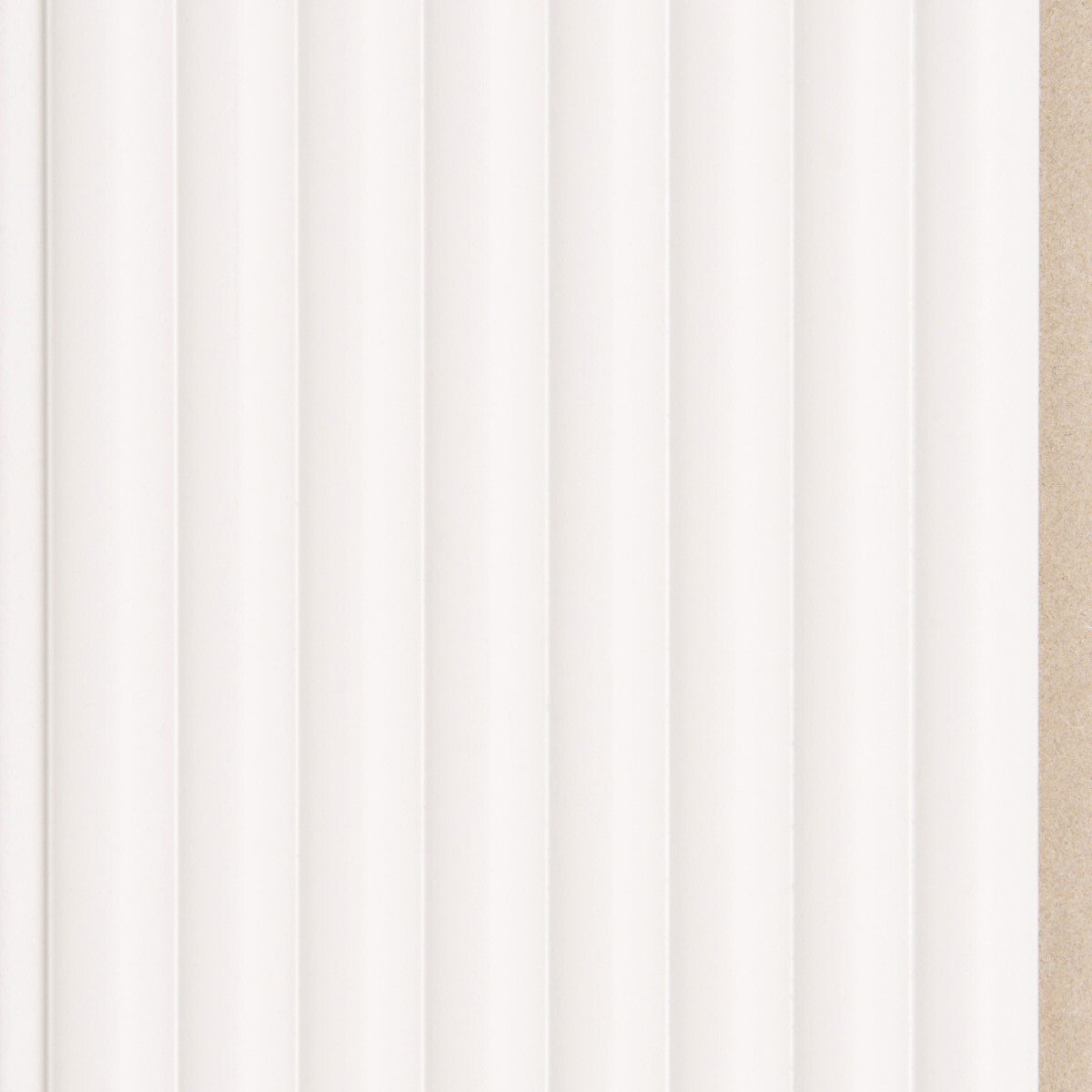

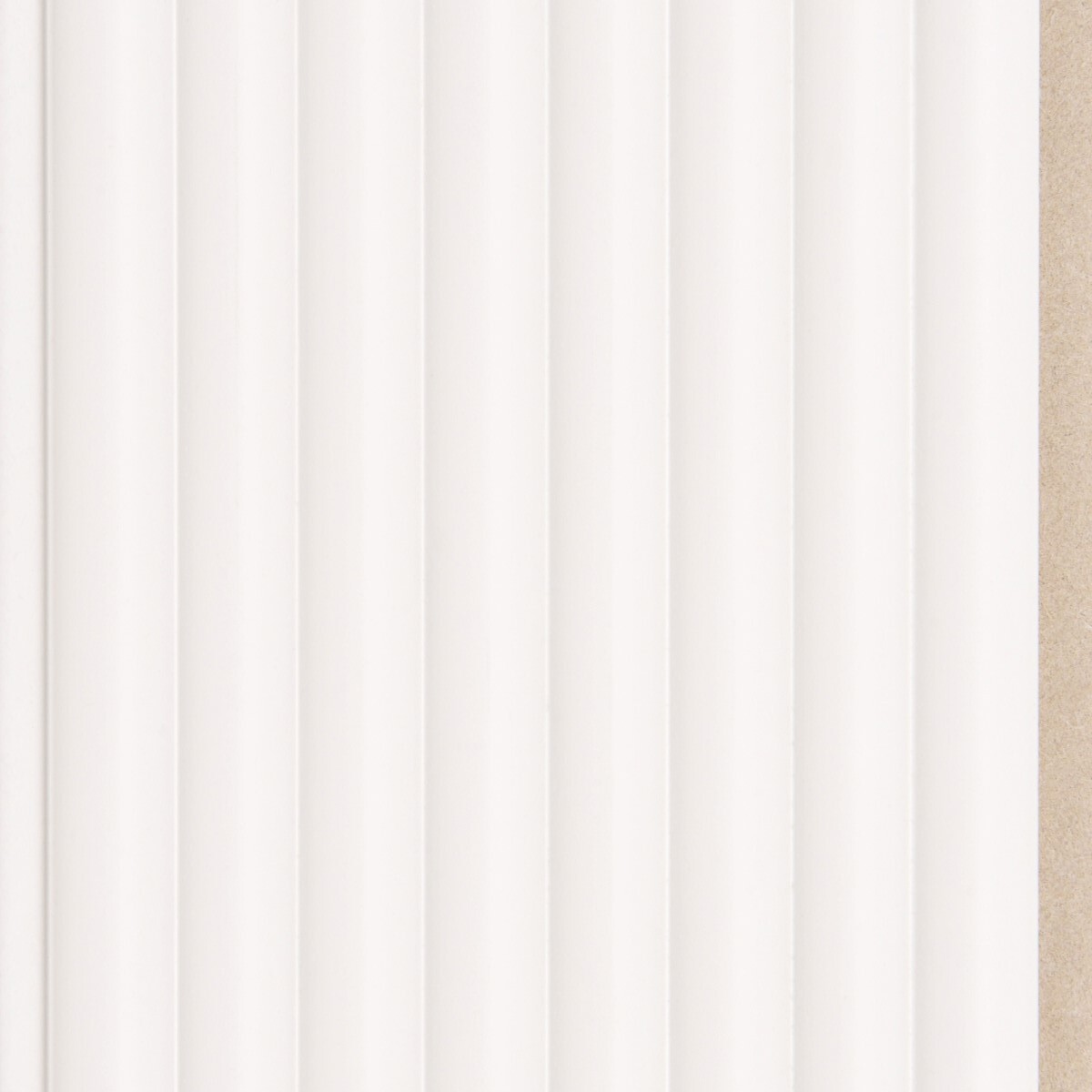

  • mconcavo-blanco-vert
  • micro-convexo
Micro Convex

BLACK

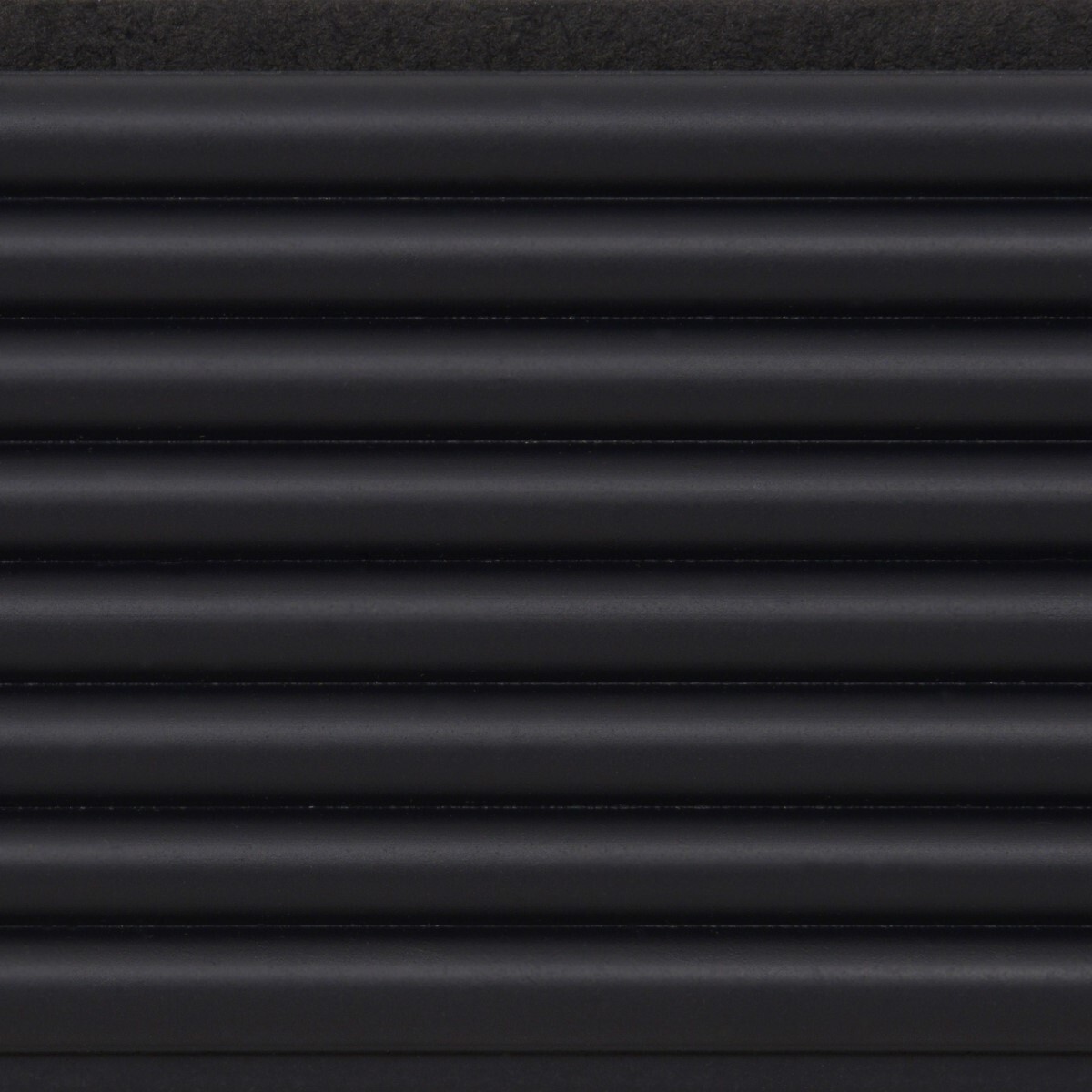

  • mconvexo-negro-hori

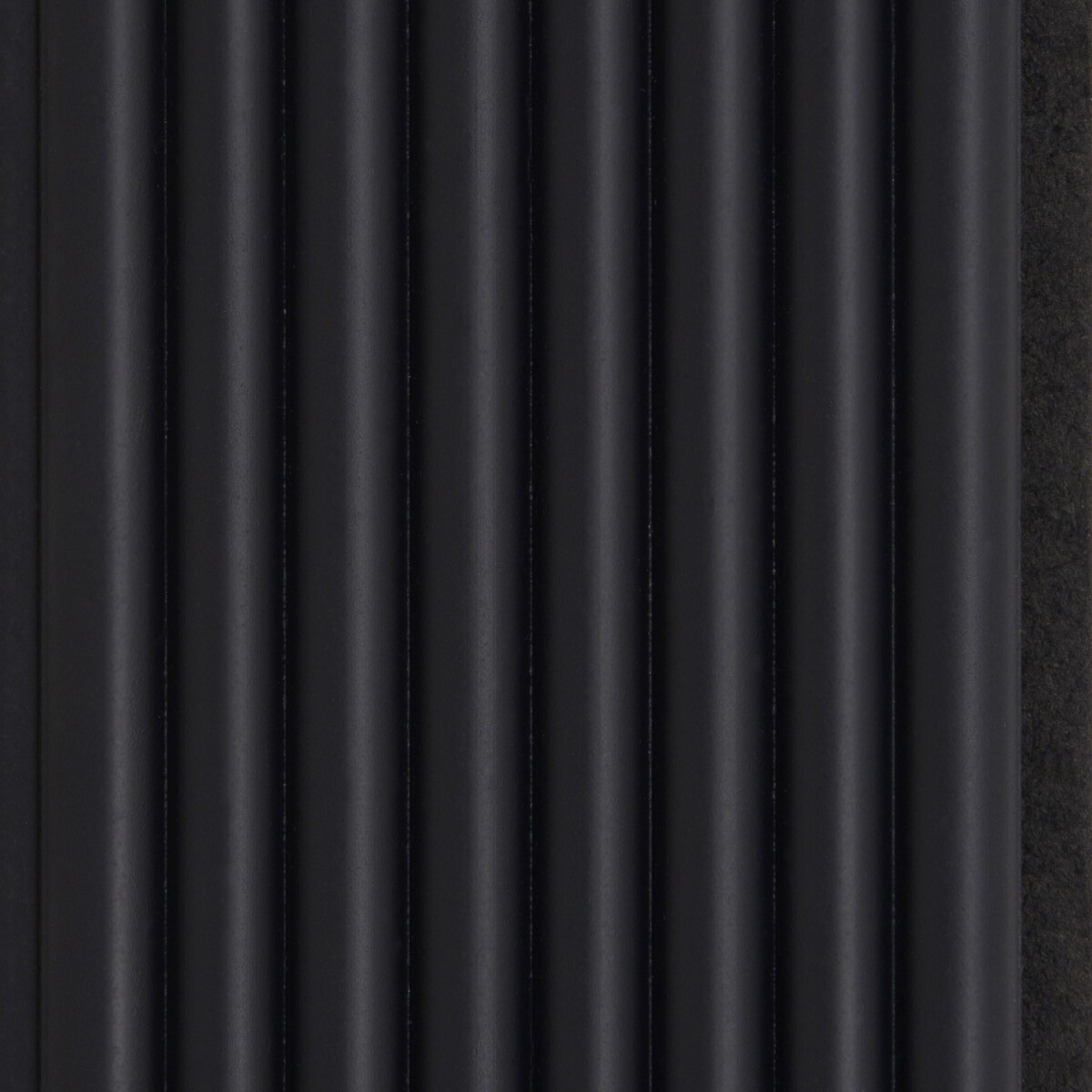

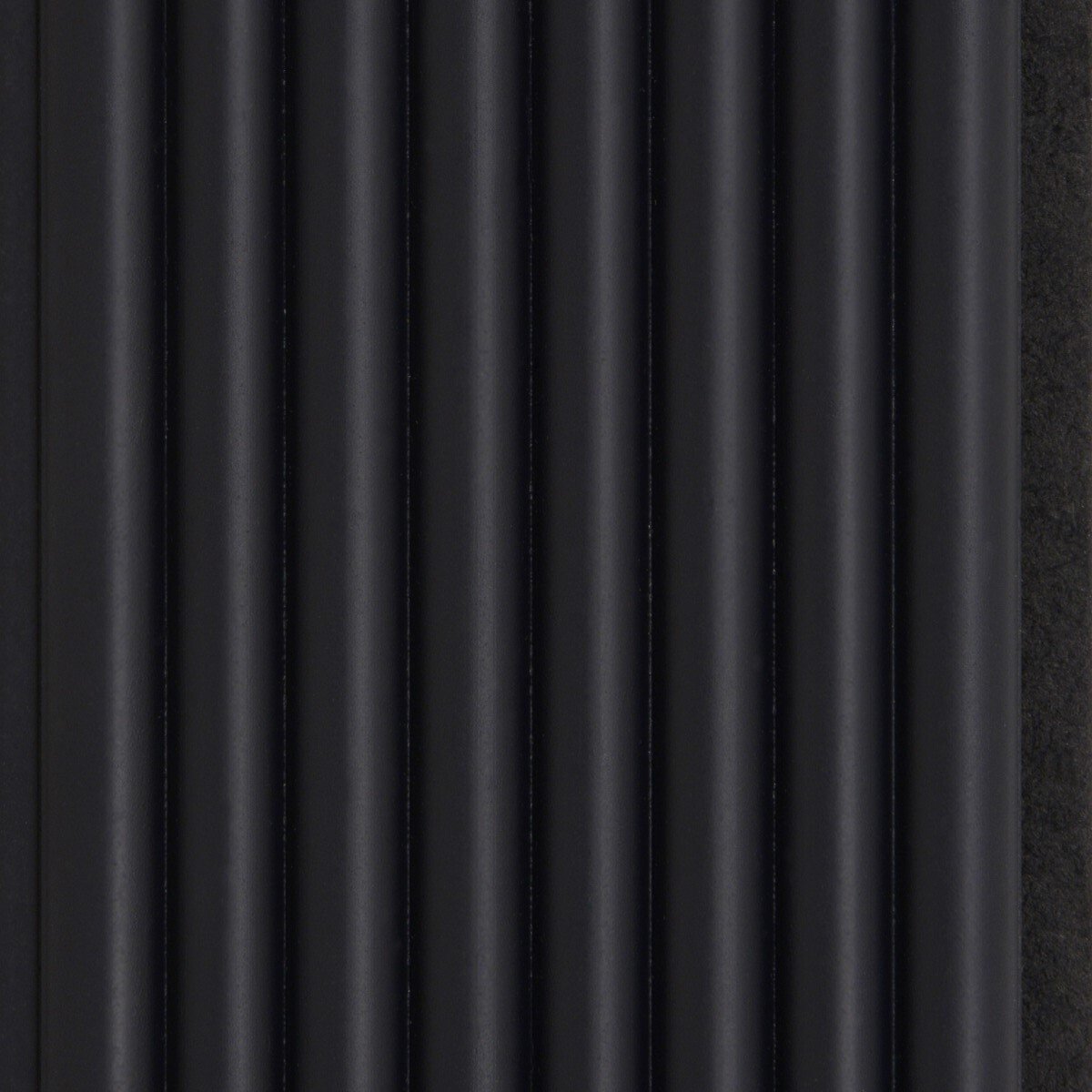

  • mconvexo-negro-vert
  • micro-convexo
  • antracita-micro
  • magma-micro
  • sierra-micro
  • vison-micro
  • terracota-micro
  • vison-micro
  • magma-micro

Explore Colors & Designs

Concave
Concave
Concave

Concave

WHITE

Convex
Convex
Convex

Convex

White

Convex
Convex
Convex

Convex

Black

Micro Convex
Micro Convex
Micro Convex

Micro Convex

WHITE

Micro Convex
Micro Convex
Micro Convex

Micro Convex

BLACK

Technical Details

  • Sizes: 96.1 x 4.72 inches
  • Thickness: 0.59 inches
  • Joint System: Tongue and Groove
  • Substrate: MDF
  • Finished surface: Painted
  • Package weight: 6.4 lbs per package
  • Packaging: 1 piece

Discover How to Install Our Wall Coverings

Learn how easy it is to install our Concave and Convex Wall Coverings. With this step-by-step guide and the right tools, you will achieve a quick installation without the need for additional finishing.

Important Recommendations

  • It is essential to acclimatize the panels during 48 hours before its mounting and in the place where it will be installed.
  • The place where the panel will be installed must be moisture free.
  • It is recommended to install Ecoplac Masisa before lining installation when:
    Walls are not well leveled.
    The wood piece shafts are not placed to the required distance.
    Higher insulation is needed.
  • Mounting wall must be clean and smooth before lining installation. Remove any roughness of 0.07” or more.
  • When cutting panels, if using a hand saw, make the cut with the decorative side facing up, and if using an electric saw, make the cut with the decorative side facing down.
  • Sawing must be made with WIDIA disc (or similar), 86 teeth with rip blades, following the rotation speed specifications v/s moving speed provided by the manufacturer of each equipment.
  • For a correct assemble and joint fixing, floor and wall installation level must be perfect. On the contrary, incorrect joints will be produced.
  • If a higher level of insulation is required for the panels, an insulating product can be added before installing the cladding.
  • It is recommended to use a mounting high elasticity adhesive, based on polyurethane, with elastic properties, moisture resistant and fast drying.
  • 0.2” to 0.4” perimeter gap is recommended per side.
  • Do not install direct to floor (due to contact with fluids), considering a gap not less to 0.4”.

    *The tolerance of this product may vary by up to +0.1 inches per piece.
