Concave, Convex & Micro-Convex Wall Coverings

More Than Walls.

Designed Experiencies

A decorative MDF solution designed to transform interior walls and ceilings with speed, ease, and precision.

Its concave, convex, and micro-convex designs enable the creation of continuous, refned spaces with a modern, elegant character.

More Than Walls

Certifications and Features

Responsible Production

Optimal Fit

Finished Product

Quick Installation

  • Tongue and Groove edge design that eases its assembly.
  • Decorative items, such as mirrors, wall frames and others can be hung on it (depending on the structural
    capacity of the substrate and the technical recommendations of the fastener supplier).
  • Final product, it doesn’t require any painting or polishing.

RECOMMENDED

APPLICATIONS

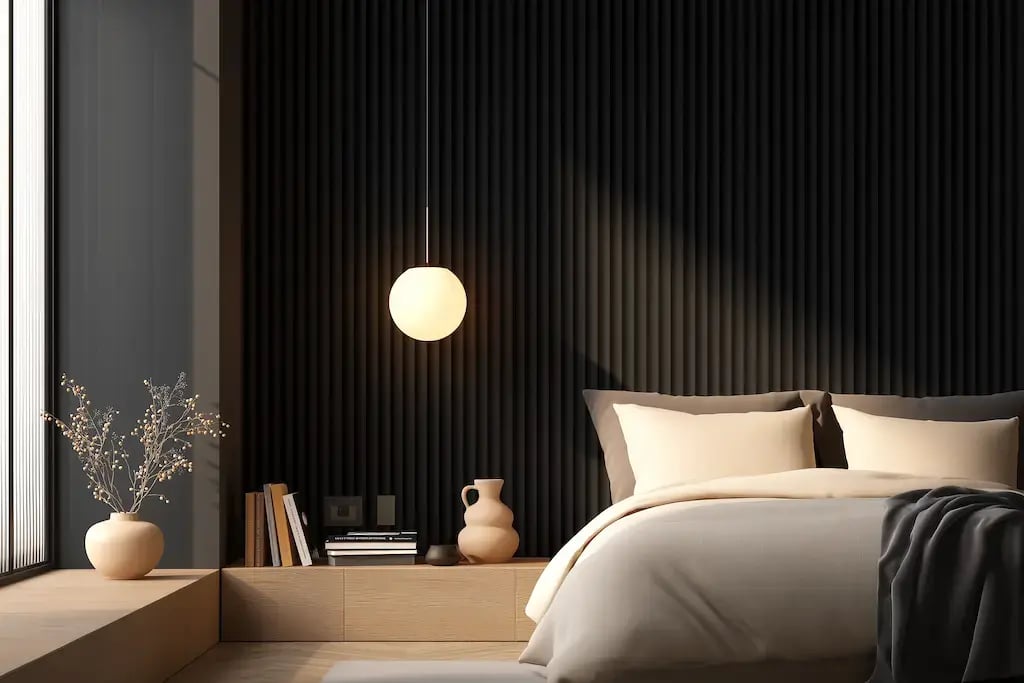

3_CONCAVO NEGRO (3B)-C

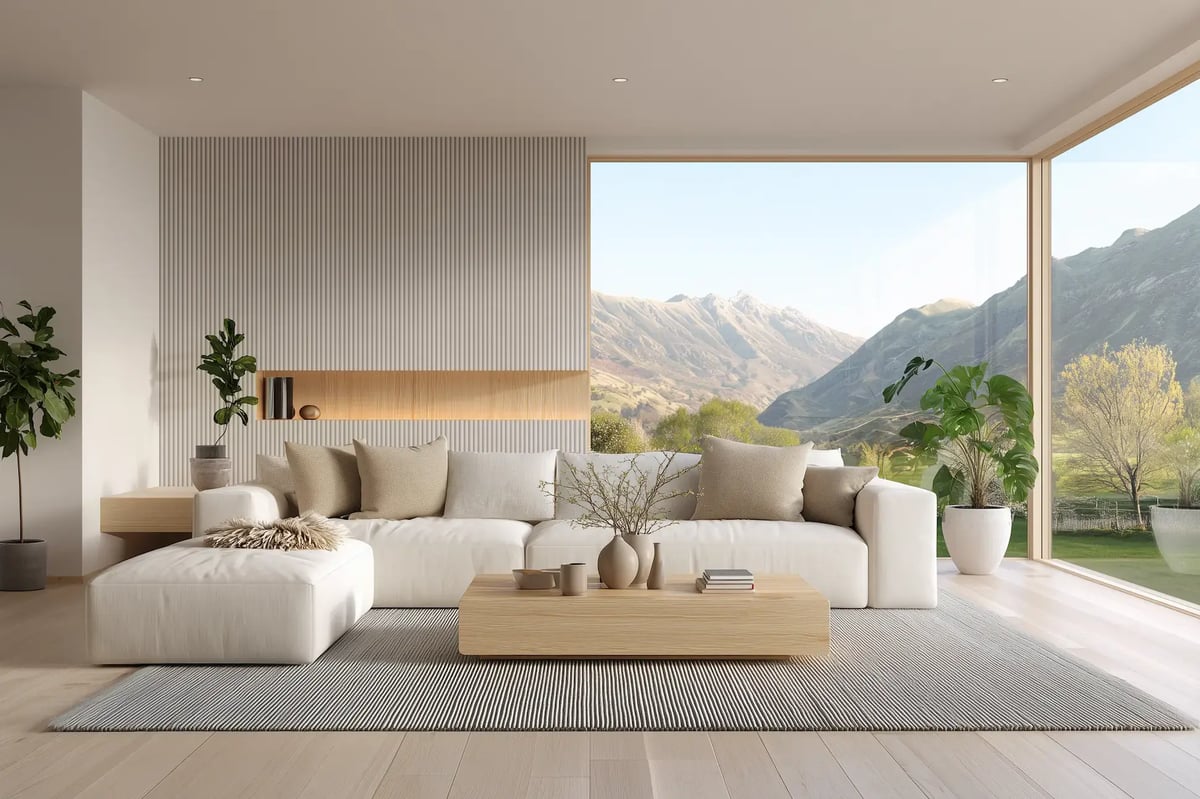

04_MICRO CONVEXO BLANCO

Designed for use as wall coverings, installed over wooden or galvanized profles, as well as on masonry or concrete surfaces. Suitable for installation in dry, moisture-free areas.

Ideal for residential, ofce, commercial, and institutional environments, this solution delivers a refned fnish while contributing to improved acoustic comfort across a wide range of spaces.

Where Light Meets Form

Light is never static—it shifts, softens, and intensifies throughout the day, continuously reshaping how a space is experienced.

Masisa’s Curved Wall Coverings are designed to work in harmony with light. Their concave and convex forms enhance shadows, add depth, and turn walls into dynamic surfaces that evolve with every moment. Because when design responds to light, a space doesn’t just exist—it’s felt.

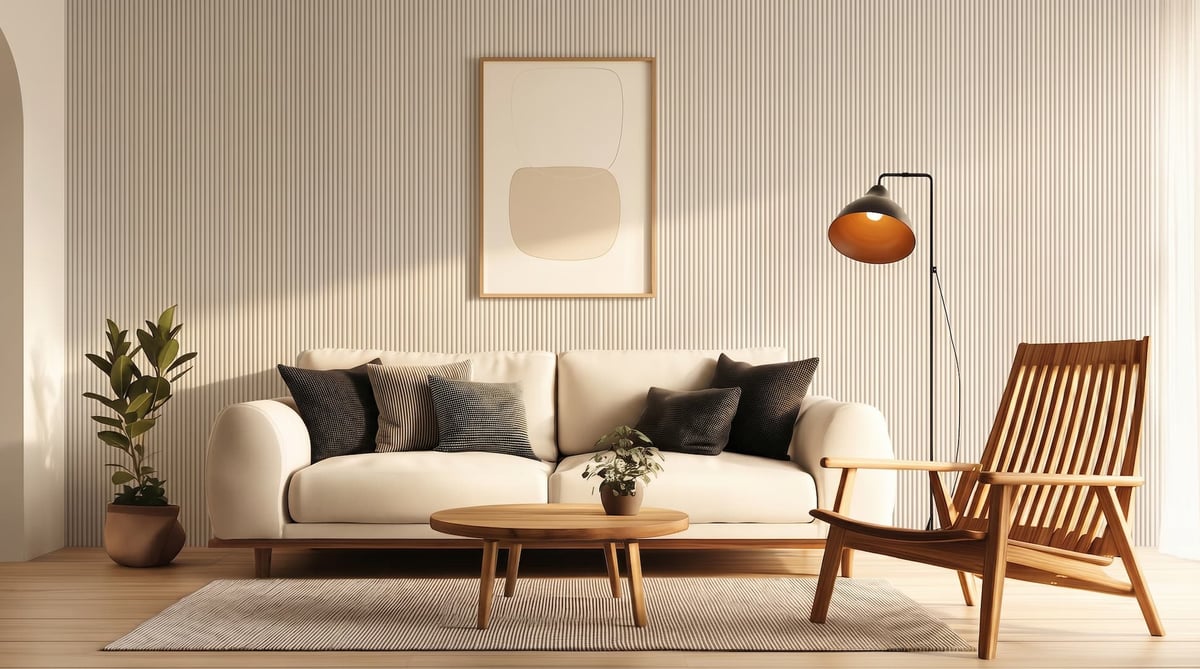

CC LUZ

EXPLORE COLORS & Designs

Concave

white

Concave white
Concave white
Concave white

Convex

white

Convex white
Convex white
Convex white

Convex

Black

Convex Black
Convex Black
Convex Black

Micro Convex

White

Micro Convex White
Micro Convex White
Micro Convex White

Micro Convex

Black

Micro Convex Black
Micro Convex Black
Micro Convex Black

Discover How to Install Our Wall Coverings

Learn how easy it is to install our Concave and Convex Wall Coverings. With this step-by-step guide and the right tools, you will achieve a quick installation without the need for additional fnishing.


Sizes:
96.1 x 4.72 inches
Substrate:
MDF
Thickness:
0.59 inches
Package Weight:
6.4 lbs per package
Joint System
Tongue and Groove
Packaging:
1 piece

Important Recommendations

Important Recommendations
  • It is essential to acclimatize the panels during 48 hours before its mounting and in the place where it will be installed.
  • The place where the panel will be installed must be moisture free.
  • It is recommended to install Ecoplac Masisa before lining installation when:Walls are not well leveled. The wood piece shafts are not placed to the required distance.Higher insulation is needed.
  • Mounting wall must be clean and smooth before lining installation. Remove any roughness of 0.07” or more.
  • When cutting panels, if using a hand saw, make the cut with the decorative side facing up, and if using an electric saw, make the cut with the decorative side facing down.
  • Sawing must be made with WIDIA disc (or similar), 86 teeth with rip blades, following the rotation speed specifcations v/s moving speed provided by the manufacturer of each equipment.
  • For a correct assemble and joint fxing, foor and wall installation level must be perfect. On the contrary, incorrect joints will be produced.
  • If a higher level of insulation is required for the panels, an insulating product can be added before installing the cladding.
  • It is recommended to use a mounting high elasticity adhesive, based on polyurethane, with elastic properties, moisture resistant and fast drying.
  • 0.2” to 0.4” perimeter gap is recommended per side.
  • Do not install direct to foor (due to contact with fuids), considering a gap not less to 0.4”.
  • *The tolerance of this product may vary by up to +0.1 inches per piece.
Concave, Convex & Micro-Convex Wall Coverings Available now at Lowe's
Contact Sales Buy at Lowes
